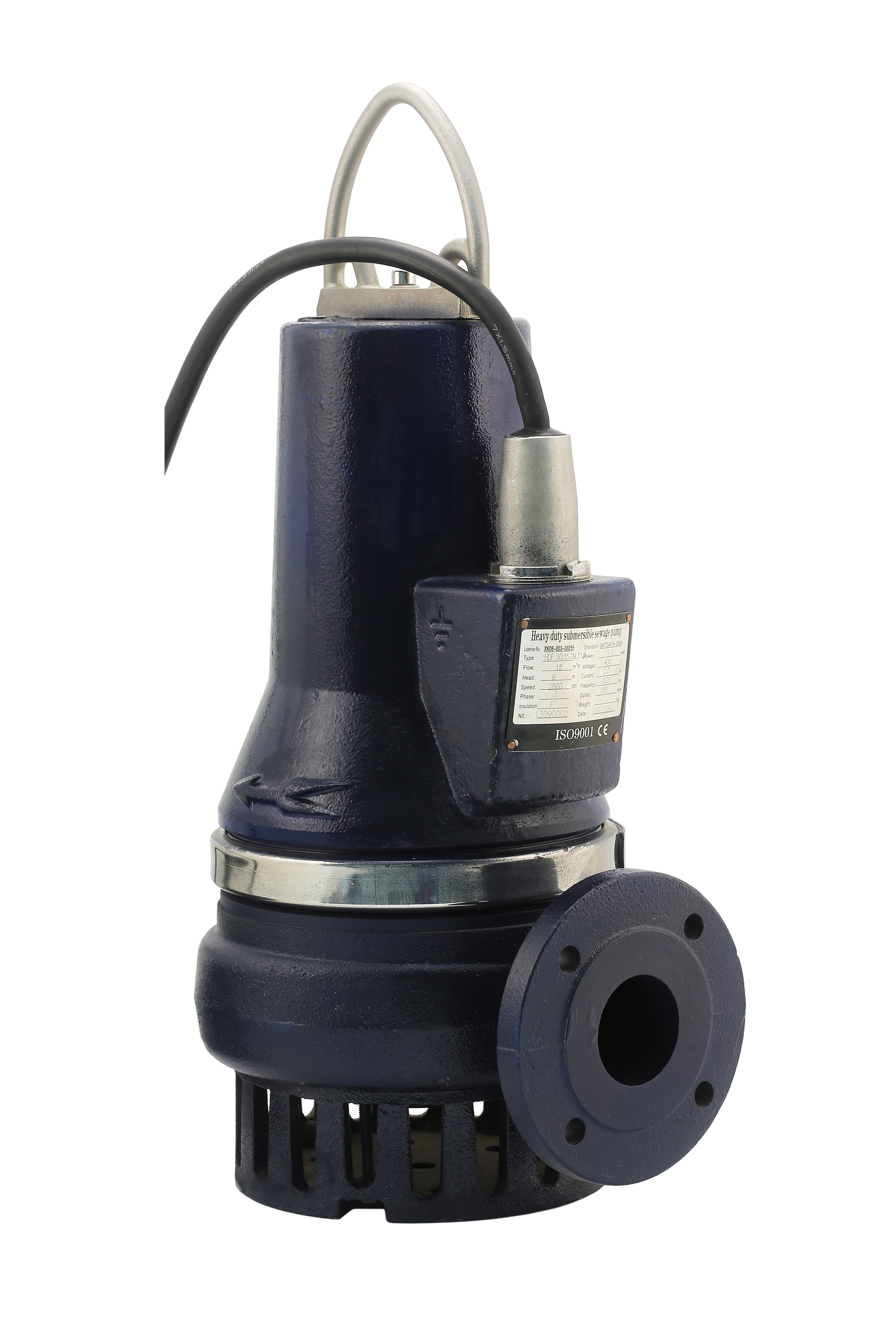

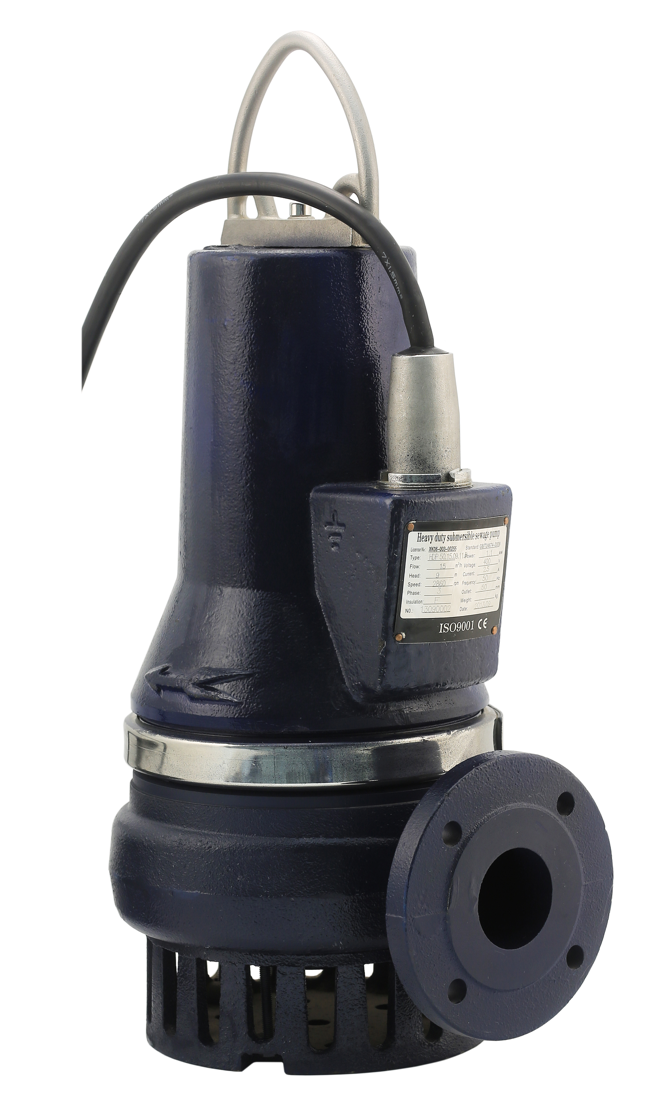

Submersible drainage pumps DSP are intended for pumping of drain and ground waters.
Pump construction:
- Leak proof cable gland with polyurethane filling and stainless steel connector prevents electric motor from water entry;
- Dense design with short shaft with outer bearings ensures reduced load on bearings hence long lasting performance;
- Pump delivery pipe has DN40 flanged connection;
- There is a mesh filter inf suction pump part, which exclude entry of big particles;
- Unique systems of clamp connection provides an opportunity of fast and easy pump dismantling without special tools usage;
- Electric motor casing could be turned through 180 degrees;
- Correct pump positioning during its lifting and stationary installation is ensured by special lifting handles;
- All the pumps of this series are delivered in complete set with flanged bend 90° necessary for hose connection.
Application:
- drain and ground waters,
- fountain pumping,
- pumping from foundation pits,
- agricultural systems,
- pumping of defecated liquids and drains.
Product name |
Article number |
Фланцевое подсоединение |
Насос DHP 50.15.09.11.D (DN 50, 1.1 кВт, 3*400 В) кабель 10 м |
73113301 |
DN 50 |
Недоступно |
Насос DHP 50.15.15.15.D (DN 50, 1.5 кВт, 3*400 В) кабель 10 м |
73153302 |
DN 50 |
Недоступно |
Насос DHP 50.15.20.22.D (DN 50, 2.2 кВт, 3*400 В) кабель 10 м |
73223303 |
DN 50 |
Недоступно |
- Power supply: 3x400 V, 50 Hz;
- Capacity (delivery rate) – up to 100 m3/h;
- Total Dynamic Head – up to 38 m;
- Temperature of pumping liquid: +40°С;
- Maximum immersion 5 m;
- Maximum size of particles: 10 mm;
- Electric motor cable: 10m;
- Inbuilt thermo switch in stator winding;
- Protection grade: IP68;
- Class of winding insulation: F (+155°С).
