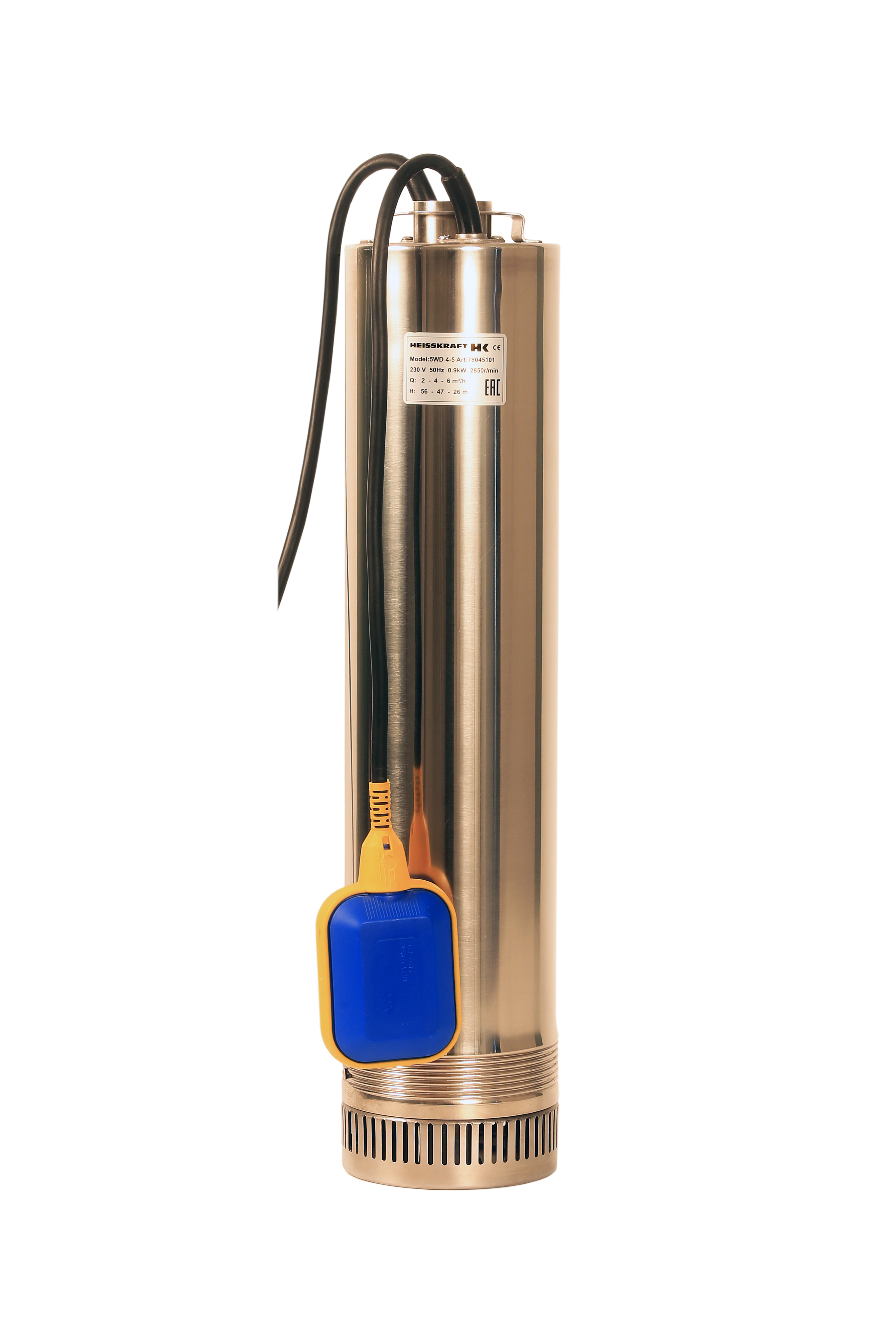

Well pump 5WD

Well pump 5WD is used for water supply in private residences and country houses from wells of 5'' and 6'' in diameter.
Pump construction:
5-inch submersible well pump,
Pumps should be used in systems with clean water (without solid particles and fibers),
Pump body is manufactured of stainless steel AISI 304,
Pump suction part is equipped with filter, which prevents solid particles from getting inside the pump;
Pump is fitted with 20 m cable with electric plug,
Characteristics shown on pump operating curves and charts are calculated according to ISO 9906;
Single-phase version of electromotor: 220-240 V/50 Hz,
Delivery set of this pump type is completed with a float switch.

Application:
domestic water supply from wells;
water pumping from reservoirs and ponds.

Power supply 1х230V, 50 Hz;
Pump capacity up to 4 m3/h;
Pump head up to 73 m;
Temperature of pumping liquid: +35°С;
Maximum immersion 50 m;
Maximum sand content 50 mg/l;
Connection: R 1 ¼'',
Minimal well size is 130 mm.
