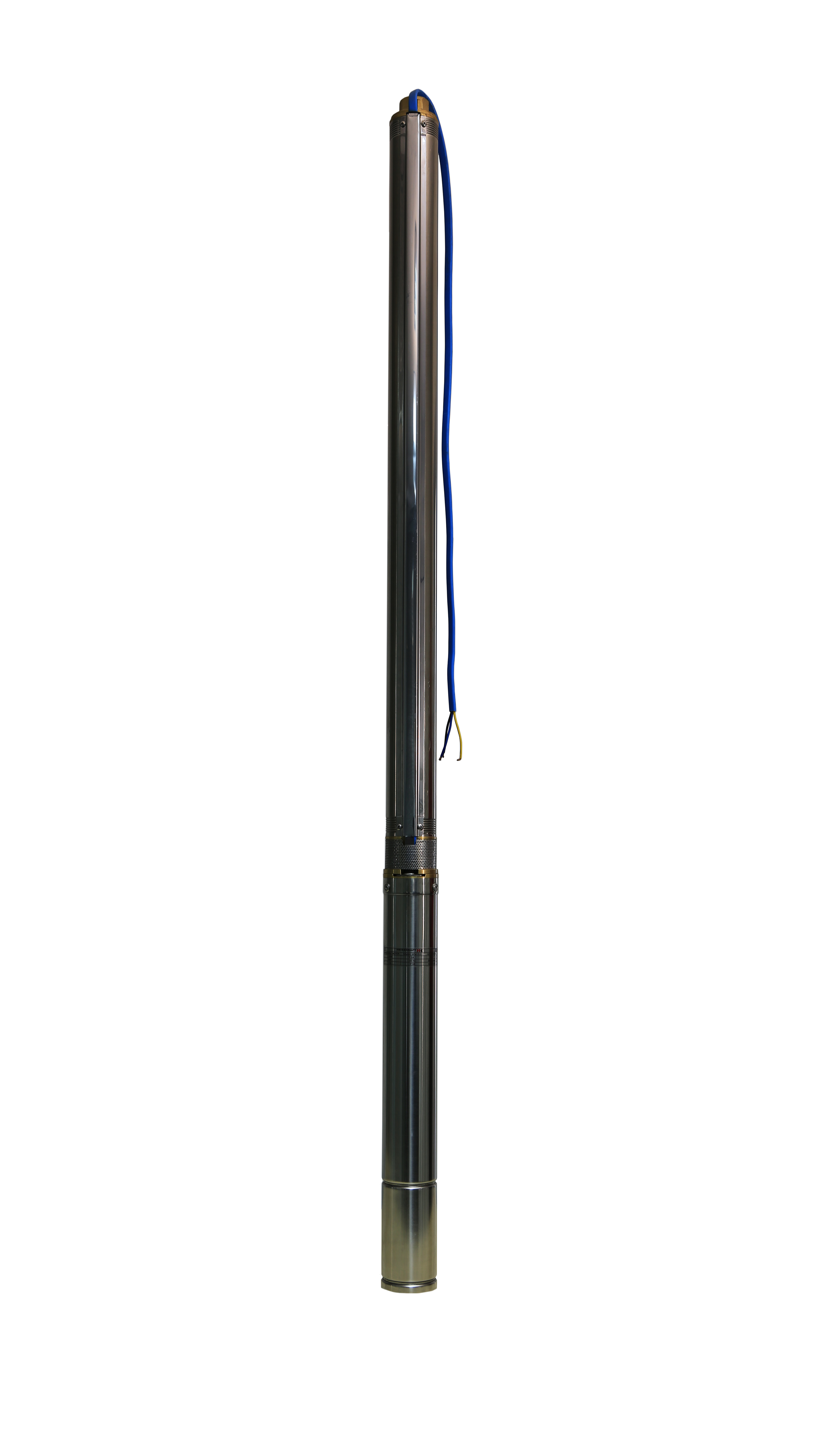

Submersible deep-well pump 3SD

Submersible pump 3SD is used for water supply from wells with minimum diameter of 3" (75 mm).
Pump construction:
- Multistage submersible pump 3SD 1,8-2,8 consists of pumping part and canned (leak resistant) electric motor.
- Multistage submersible pump is of sectional type and manufactured with radial impellers
- Main pump parts are made of stainless steel AISI 304;
- Impellers are plastic;
- Pump suction part is equipped with filter;
- Inbuilt check valve;
- Pump is made with 3 core submersible cable of 1,5~2 m in length;
- Connection flange to dimensions under NEMA 3''.

Application:
- domestic water supply from wells;
- systems of public water supply;
- irrigation systems;
- water pumping from reservoirs;
- firefighting systems;
- water supply from artesian water wells.

- Power supply 1х230V, 50 Hz;
- Pump capacity up to 3 m3/h;
- Pump head up to 180 m;
- Temperature of pumping liquid: +35 °С;
- Maximum immersion 80 m;
- Maximum sand content 50 mg/l;
- Connection: Rp 1''
