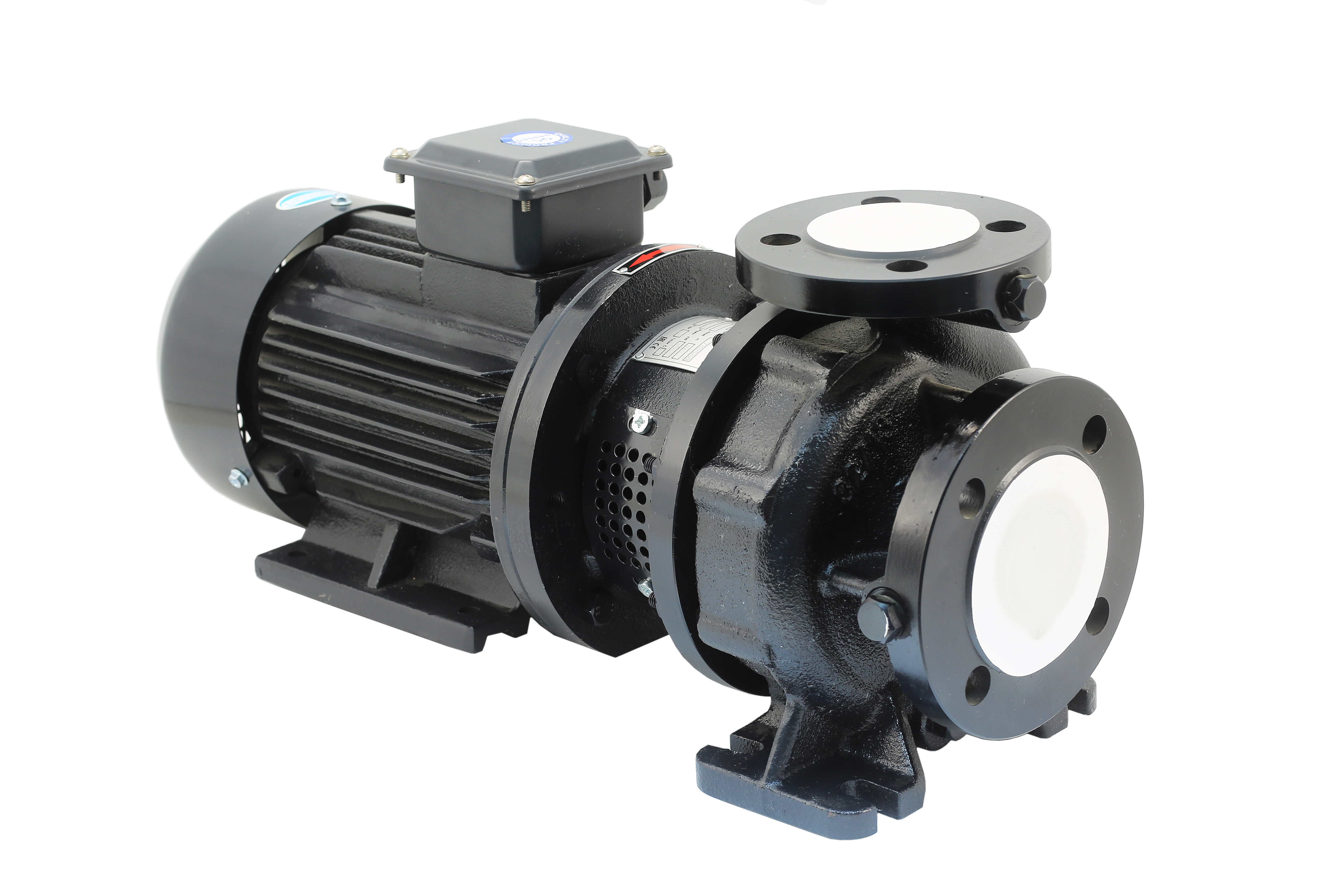

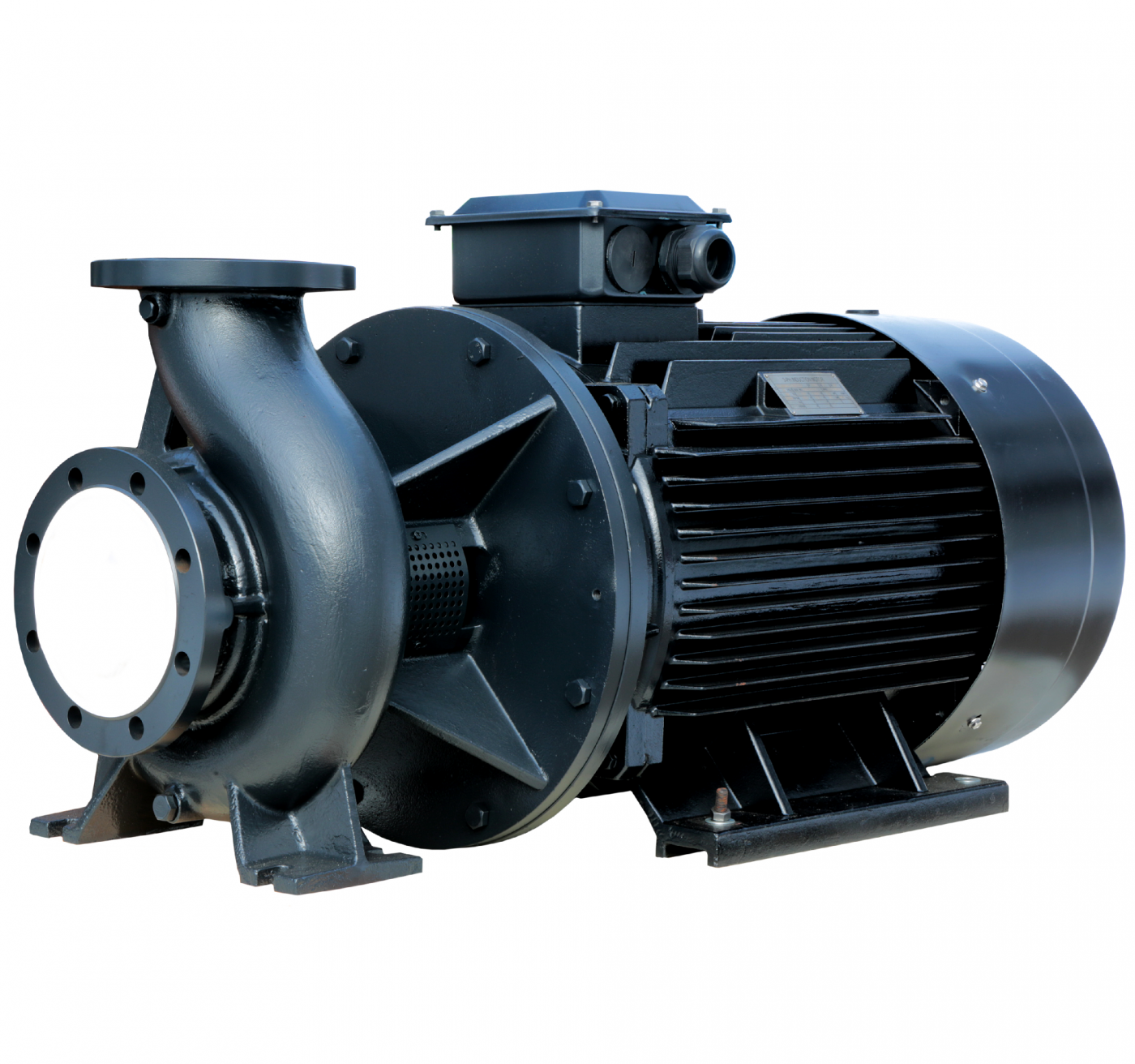

Pumps of HBP

Pumps of HBP series are all general suction, single-stage and close-coupled. These pumps are centrifugal and have one-side inlet of liquid to impeller, they also have axial suction port and radial discharge port, which is bigger than suction port in diameter.
Close coupled pump is an integrated unit with impeller installed at the end of extended shaft of electromotor. This version of pump construction benefits from low level of noise and vibration as well as from denser sizes in comparison with similar console pumps.
Close-coupled shaft and specially designed bearings improve reliability of pump work. Pump motor is highly efficient, it has high torque and low noise level.
Insulation class of stator winding F provides an opportunity to work at high temperatures, that helps to reduce a degree of motor wear and tear, and as a result ensures its longer lifetime.

Technical characteristics:
- Motor protection grade: IP54;
- Delivery rate – up to 700 m3/h;
- Total Dynamic Head – up to 152 m;
- Maximum temperature of pumping liquid: +85 °С (Special version – up to +120 °С);
- Maximum ambient temperature: +40 °С;
- Maximum working pressure – 16 Bar;
- Power supply voltage: 380V;
- Motor rotation speed: 1459 and 2900 rpm.

Application:
• - water supply,
• - water intake facilities,
• - industrial water supply and water discharge,
• - heating and ventilation systems,
• - firefighting systems,
• - industrial use,
• - agricultural systems.
