HMH pumps

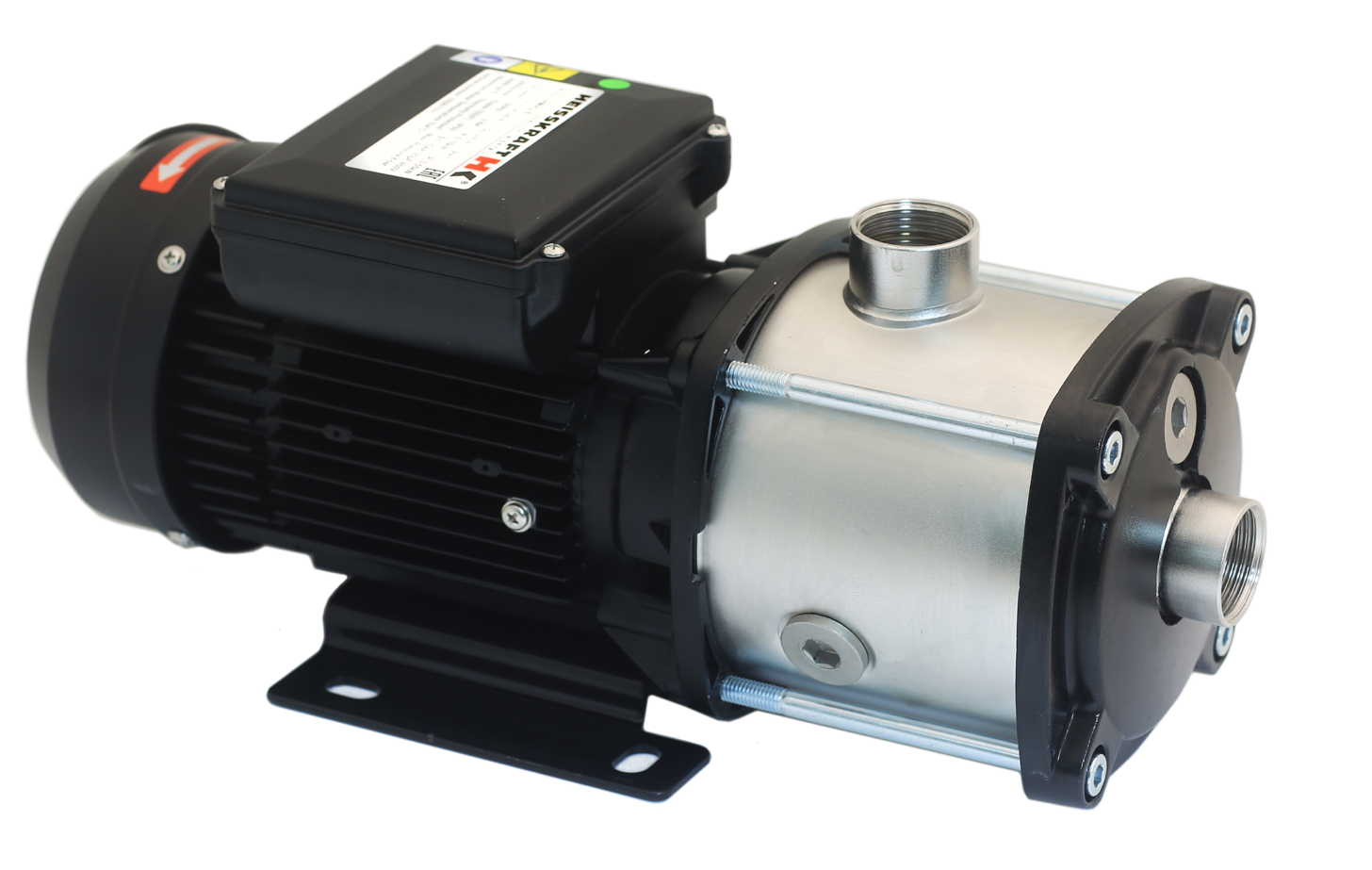

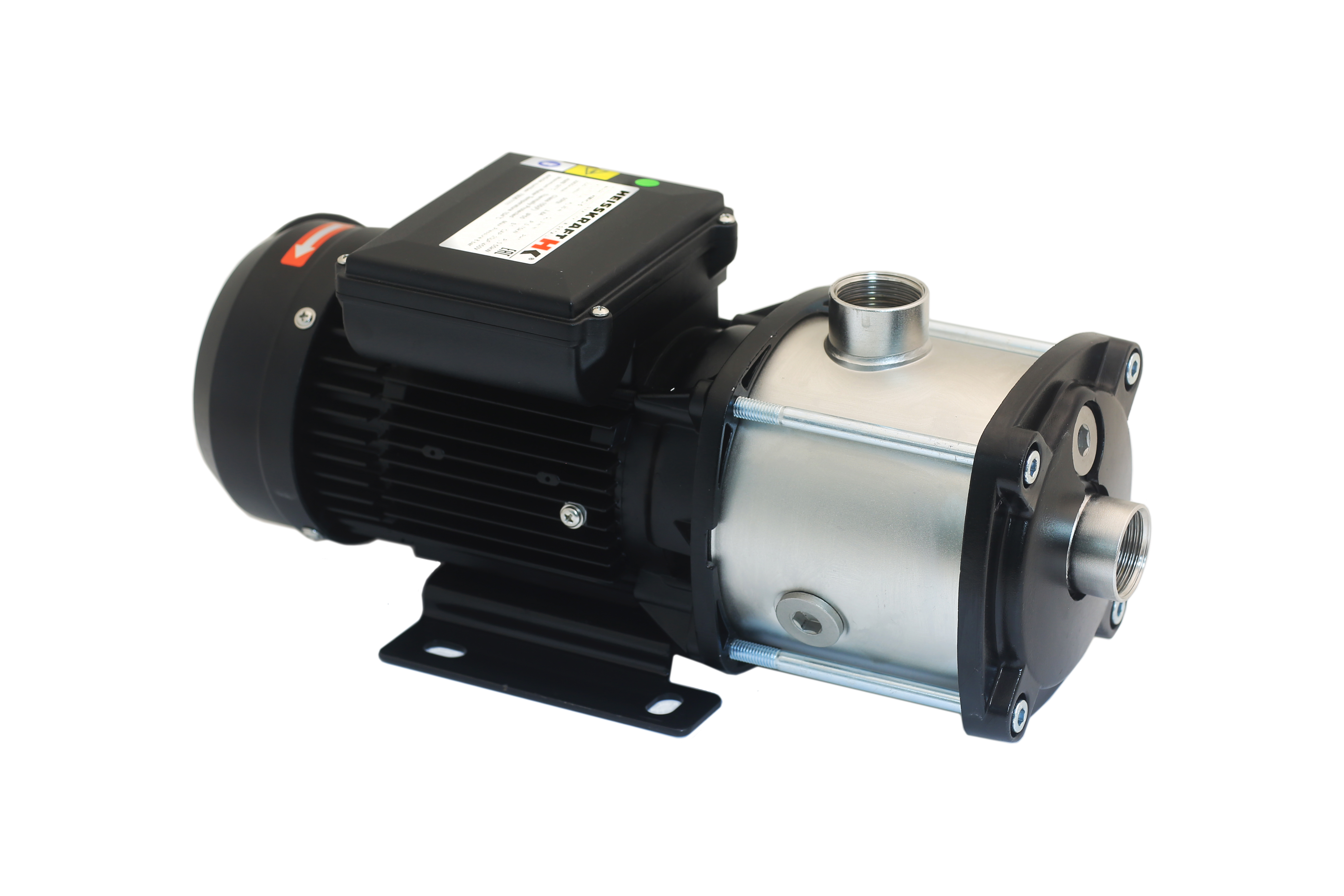

HMH pumps are horizontal, centrifugal, multistage pumps.
HMH pumps are equipped with electric motor and module pumping part with common suction and horizontal axis, which is modular built-up construction fitted with horizontal suction port and vertical discharge port mounted on the base plate. Hydraulic part of the pump consists of separate items and has corresponding quantity of multistage chambers. Main pump components are manufactured of stainless steel. Dense construction of HMH pumps could be mentioned as one of the advantages.

Technical characteristics:
- Power supply: 3x400 V, 50 Hz (other parameters – on request);
- Capacity (delivery rate) – up to 28 m3/h;
- Total Dynamic Head – up to 80 m;
- Temperature of pumping liquid: +105°С (other parameters – on request);
- Nominal diameters: G 1'' – G 2'';
- Maximum working pressure – 8 Bar (other parameters – on request);
- Protection grade: IP55;
- Insulation class: F.
- Ambient temperature – not more than +40 °С.

Application:
- water supply systems,
- boosting in water supply systems,
- feed pump,
- bypass filter pump,
- water treatment systems,
- water booster systems,
- washing and cleaning systems.
