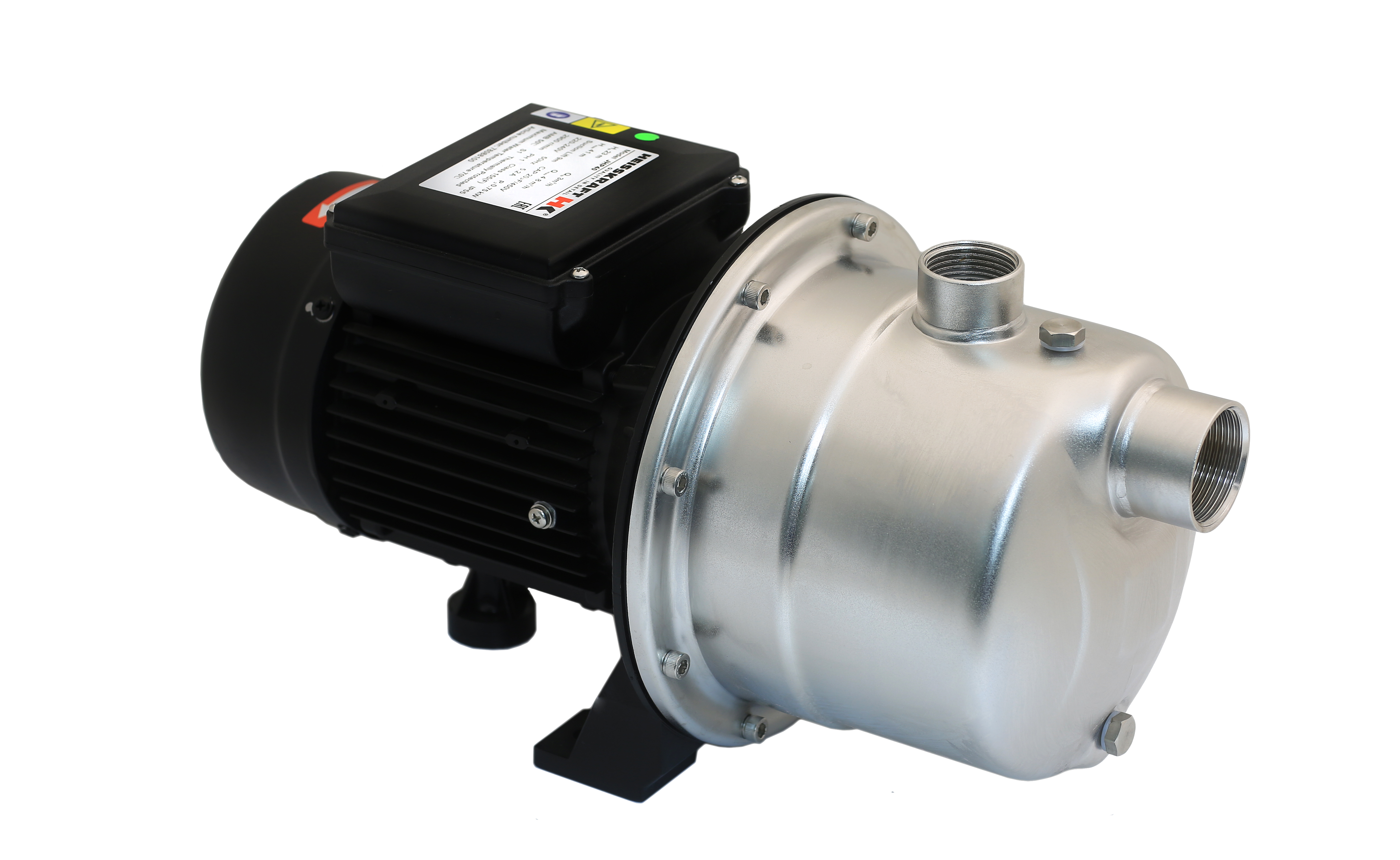

JHP pumps are horizontal single-stage centrifugal pumps with inbuilt ejector, which allows liquid self-suction.
The pumps are equipped with horizontal self-priming nipple and vertical pressure tubes.
Characteristics and advantages:
- self-priming (self-suction),
- lifting from the depth of 8 meters with the help of inbuilt ejector,
- stable operating even in case of air presence in the liquid,
- substantial design ensuring a possibility of stationary pump installation,
- pumping part is directly connected to the special induction motor with air ventilation cooling,
- pump delivery up to 5 m3/h,
- pump head up to 55 m,
- temperature of pumped liquid: from 0 °C to +55 °C,
- max working pressure: 6 Bar.
Application
JHP pumps could be used for water supply from open waters, wells, deep wells, vessels and existing pipelines. These type of pumps could be installed in centers of automatic water supply.
Main fields of application:
- systems of water supply,
- systems of water treatment,
- feeding systems,
- sprinkler and irrigation systems,
- boosting systems.
Product name |
Article number |
Насос JHP 40 (G 1 1/4" - G 1", 0.75 кВт, 1х220 В) |
78088100 |
Недоступно |
Насос JHP 60 (G 1 1/4" - G 1", 1.3 кВт, 1х220 В) |
78138101 |
Недоступно |
